ZENTRUM
Heavy Duty type featured

Compact Heavy Duty type

  • Transporting heavy loads is possible. 750 kg to 3500 kg
  • Compact body size

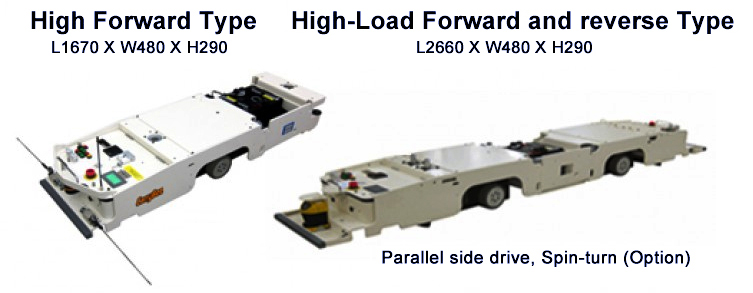

Heavy Duty type option
carrybee spesification
Programmable / No ProgrammableProgrammable (Count Up)
Transportable Weight750kg to 3500kg (Forward), 1500kg (Forward and Reverse)
Guidance MethodMagnetic,(Optical),(Optical & Magnetic)
Drive MethodForward: 2WD, Forward and Reverse: 4WD
Driving Speedabout 30 to 50m/min (Max. speed depends on loading weight)
Length x Width x Height
Minimum Turning RadiusForward: R800, Forward and Reverse: R1000 (??)
Continuous Operation Hours8 hour (Depend on utilization rate and battery size)
Performance / FunctionRunning functions
Setting speed: 10 speeds variable?
Destination control function
200 programs, 200 steps, Operation mode
(Run straight, Turn right or left, Stop, Speed change, Obstacle sensor changeover)(200 patterns of operation mode are available.), (Intersection entry control),(Wireless running route control),(Start by remote controller)
Safety functions
Overload detection, Obstacle detection (Detection area changeable), Emergency stop switch, Buzzer alarm for abnormalities, Signal tower, Bumper sensor, Melody unit
Others
Drive wheel free structure in manual operation, (Electrical powered pin hook), (Battery),(Charger)
CE marking is available
ReferenceOption
