Compact Kai Ⅰ type
Kai model will join your “KAIZEN”(改善) team to boost productivity strongly.

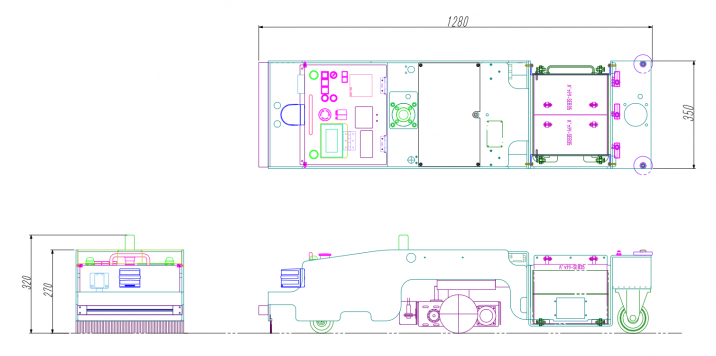

Outline Drawing
Operation of Low-height
It automatically connects and disconnects carts using a hook that slides underneath and elevates electrically.
| Programmable / No Programmable | Programmable (Count Up ) |
| Transportable Weight | 400kg |
| Guidance Method | Magnetic, (Optical) |
| Drive Method | Forward: 2WD |
| Driving Speed | Max. about 40m/min |
| Length x Width x Height | 1280×350×270 (mm) |
| Minimum Turning Radius | Forward: R600 (mm) |
| Continuous Operation Hours | 8 hours (Depending on utilization rate and battery size) |
| Performance / Function | Destination control function |
| 200 programs, 200 steps | |
| Operation switch | |
| Power supply button, Emergency stop button, Touch panel (Start, Stop, Reset, Abnormal indicator, ect) | |
| Others | |
| CE marking is not available |
