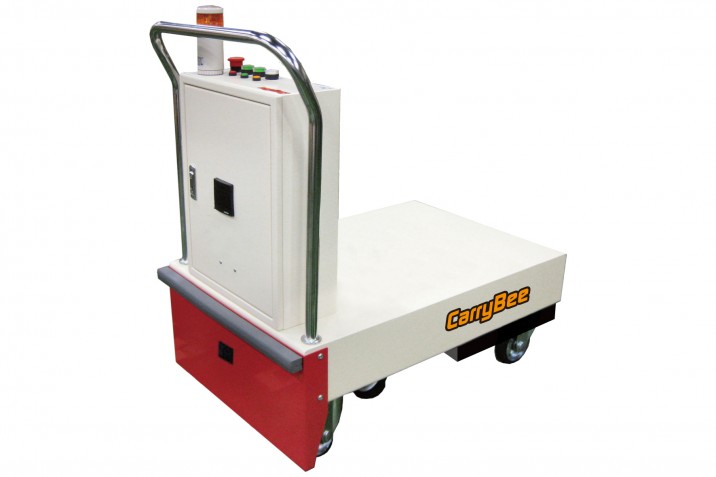

Unmanned conveyance vehicle that the dolly type is customized for loading purpose
Simple loading type.Loading space is flat and wide.(Batteries are stored under the vehicle.)
| Programmable / No Programmable (Ref.1) | Programmable (Absolute Address?Count Up) / No Programmable (Tape Cut (Gap Reading), Marker Stop, Marker Pattern) Select either of them. |
| Transportable Weight | 400, 500, 750kg |
| Guidance Method | Magnetic, (Optical), (Optical & Magnetic) |
| Drive Method | 2WD, (4WD) |
| Driving Speed | Max. about 27m / min (Available up to 40m / min) |
| Length x Width x Height | 500kg: 1065×600×941, 750kg: 1110×775×1080 (mm) |
| Minimum Turning Radius | 400kg: R550, 500kg, R700, 750kg: R1000 (mm) |
| Continuous Operation Hours | 8 hours (Depending on utilization rate and battery size) |
| Performance / Function | Running functions |
| (Setting speed : 10 speeds variable) | |
| Destination control function | |
| 200 programs?200 steps, Operation mode (Run straight, Turn right or left, Stop, Speed change, Obstacle sensor changeover) (99 patterns of operation mode | |
| available.), (Intersection entry control), (Wireless running route control), (Start by remote controller) | |
| Safety functions | |
| Overload detection, Obstacle detection (Obstacle sensor (Detection area changeable)), Emergency stop switch, Buzzer alarm for abnormalities (Signal tower), (Bumper sensor), (Melody unit) | |
| Others | |
| Drive wheel free structure in manual operation (Towing hook), (Auto-detaching of towed cart), (Battery Charger) | |
| CE marking is not available | |
| Reference | ( Ref. 1) If you select No Programmable type, some options are not available. |
| Option |
