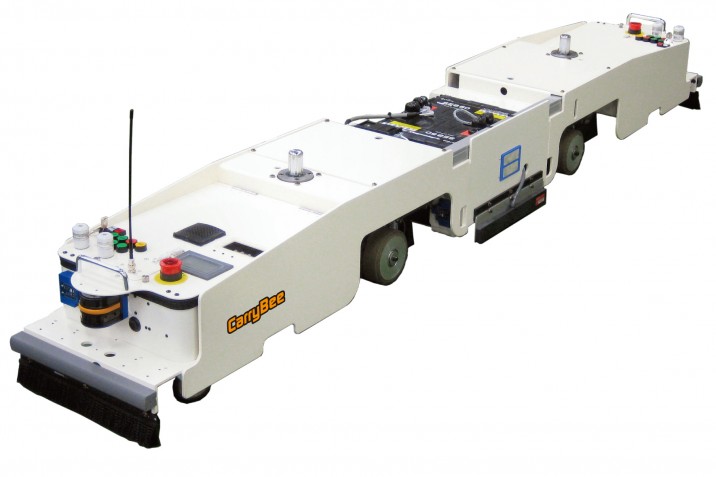

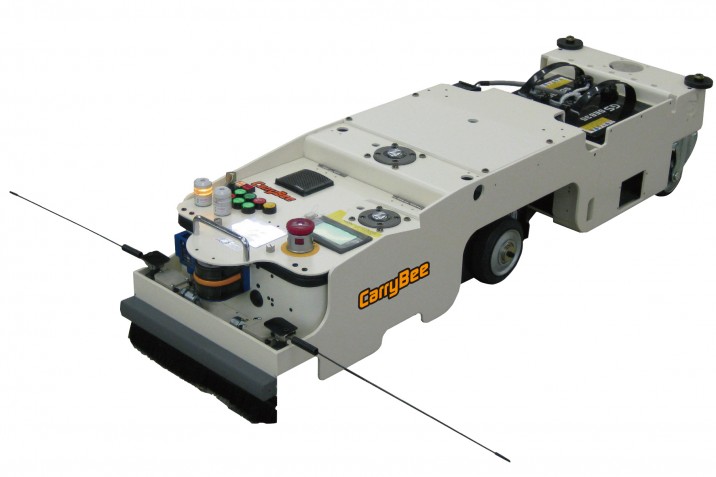

Multi-Functional Type used in various situations
It can slide under a cart, connect and detach automatically.
| Programmable / No Programmable | Programmable (Count Up) |
| Transportable Weight | 500 to 1500kg (Forward), 750 to 1500kg (Forward and Reverse) |
| Guidance Method | Magnetic, (Optical), (Optical & Magnetic) |
| Drive Method | Forward: 2WD, Forward and Reverse: 4WD |
| Driving Speed | Max. about 50m/min |
| Length x Width x Height | Forward: 1390 x 350 x 272, Forward and Reverse: 2129 x 350 x 272 (mm) |
| Minimum Turning Radius | Forward: R500, Forward and Reverse: R1000 (mm) |
| Continuous Operation Hours | 8 hours (Depending on utilization rate and battery size) |
| Performance / Function | Running functions |
| Setting speed: 10 speeds variable | |
| Drive wheel free structure in manual operation, (Electrical powered pin hook), (Battery), (Charger) | |
| Others | |
| Mid-sized type is not applied to CE marking, but N type applied to CE marking is prepared. | |
| Reference | Option |
