Ideal for transport between buildings

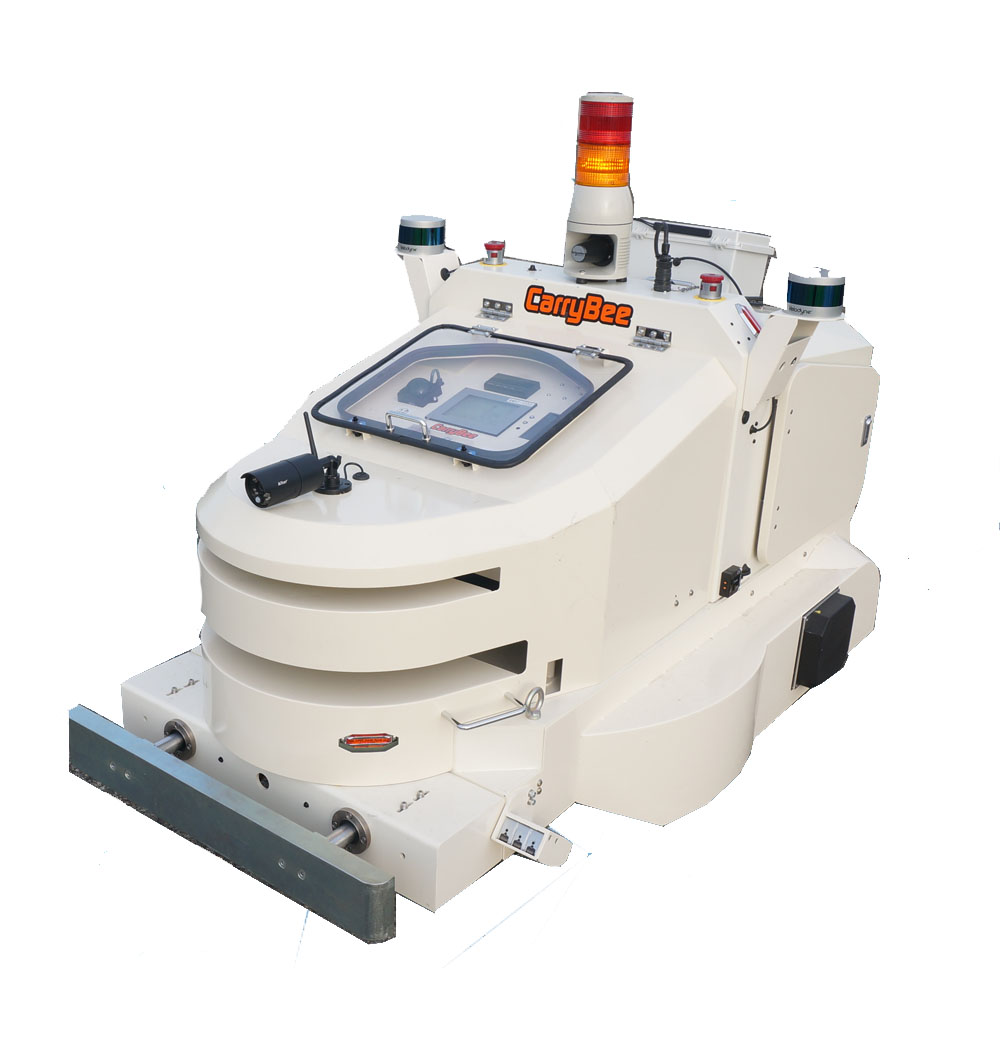

- A maneuverable outdoor AGV. It
can be used in a wide range of zones, from between buildings to inside the premises. - A new trackless type that uses 3D Lidar has been added.
No need to lay magnetic cables.
Features of outdoor AGVs
- Automated transportation between factory buildings
- Suitable for outdoor environments such as rain, uneven road surfaces, and ramps when entering buildings
- Maximum towing capacity of 3000 kg
- Minimum turning radius of R700 allows turning in space-saving indoor corridors
In many factories, manned towing vehicles are used for transport between buildings. By using outdoor AGVs, unmanned operation can be achieved.

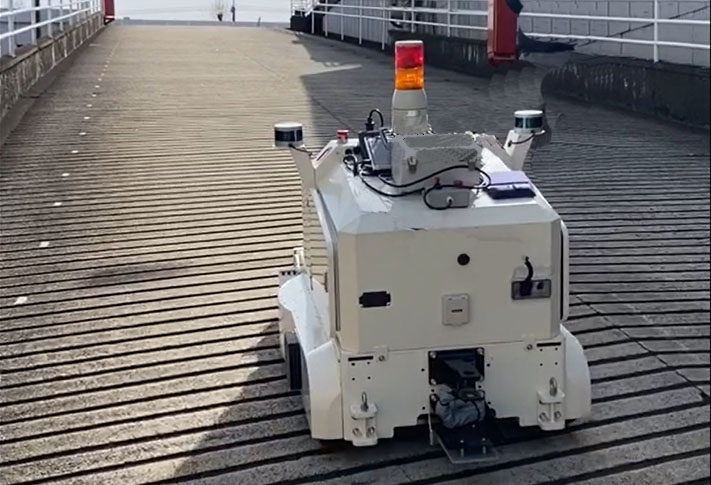

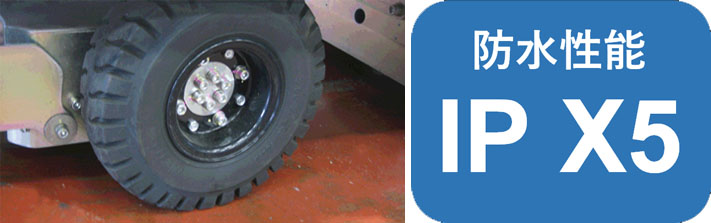

There are slopes everywhere outdoors, including at the entrance to buildings. Outdoor AGVs can climb slopes of up to 5 degrees. They are equipped with large diameter wheels that are strong against uneven road surfaces, and each part is designed to withstand rain.
New model of trackless outdoor AGV
Two 3D Lidar sensors, which are also used in self-driving cars, are used. Planar measurements using 2D sensors can cause the route to be lost due to environmental changes such as pallets of parts being loaded near the driving route.
By understanding the surrounding environment, including distant views, in 3D, it is possible to improve accuracy.
In tracked magnetic systems, magnetic cables are embedded as driving routes, but by using 3D Lidar sensors, magnetic cables are not necessary, making it easier to change or add routes.
| Towingweight (approximate) | 3000kg |
| Traction force(maximum at high speed) | 345456N |
| Travel speed (unloaded) | Approx.95m/min10-speed switching |
| Induction method | Magnetic |
| Travel direction | Forward,back abit function |
| Minimum turning radius | R 700mm |
| Climbing ability | Up to 5 degrees (carrying load up to 2500 kg) |
| Stopping accuracy (AGV alone,no load) | ±１０ｍｍ |
| Full length × full width × full height | Standard type:1545x732x1425[mm] |
| High-speed type:1750 x 732 x 1297 mm | |
| PerformanceandEquipment | Driving performance |
| 10-steps witching | |
| Destination designation function | |
| Yes (counting type) or RFID | |
| Safety measures | |
| Collision prevention (obstacle detection), bumper switch, indicator light (signal tower), melody unit | |
| battery | 48V 150AH X 4pcs |
