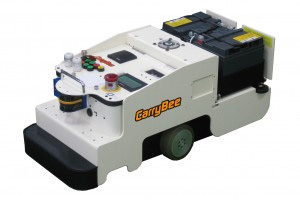

Compact Short type
It can slide under a cart, connect and detach it automatically.
| Programmable / No Programmable | Programmable (Count Up) |
| Transportable Weight | 300kg (Forward), 600kg (Forward and Reverse) |
| Guidance Method | Magnetic, (Optical? , (Optical&Magnetic? |
| Drive Method | Forward: 2WD, Forward and Reverse: 4WD |
| Driving Speed | Max. about 50m/min |
| Length x Width x Height | Forward: 820×350×350, Forward and Reverse: 1400×350×350 (mm) |
| Minimum Turning Radius | Forward: R350, Forward and Reverse: R800 (mm) |
| Continuous Operation Hours | 8hrs (depending on operation rate and battery size) |
| Performance?Function | Running functions |
| Setting speed: 10 speeds | |
| Control function | |
| 200 programs, 200 steps, operation mode (Straight running, Right turn, Left turn, Stop, Speed change, Obstacle sensor changeover, etc.), (200 patterns of operation mode are available? , (Intersection Entry Priority? , (Wireless running route control? , (Start by remote controller? | |
| Safety functions | |
| Overload detection, Obstacle detection (Detection area changeable), Emergency stop switch, Buzzer alarm for abnormalities, Signal tower, Bumper sensor, Melody unit | |
| Others | |
| Drive wheel free structure in manual operation, (Electrical powered pin hook? , (Battery? , (Charger? | |
| CE marking is available | |
| Reference | Option |
