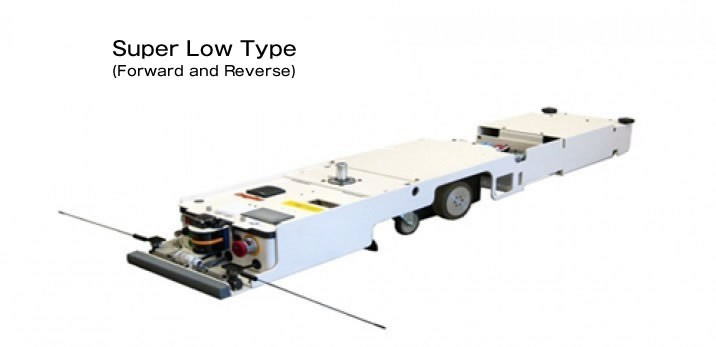

Super Low type: 170mm height
It can be used for a narrow space between a towed cart and the floor
| Programmable / No Programmable | Programmable |
| Transportable Weight | 500 to 750kg (Forward), 750kg (Forward and Reverse) |
| Guidance Method | Magnetic, (Optical), (Optical & Magnetic) |
| Drive Method | Forward: 2WD, Forward and Reverse: 4WD |
| Driving Speed | Max. about 30?50m/min (Max. speed depends on loading weight) |
| Length x Width x Height | Forward: 1599×350×170, Forward and Reverse: 2640×350×170 (mm) |
| Minimum Turning Radius | Forward: R1000, Forward and Reverse: R1200 (mm) |
| Continuous Operation Hours | 8 hours (Depending on utilization rate and battery size) |
| Performance / Function | Running functions |
| Setting speed: 10 speeds | |
| Destination control function | |
| 200 programs, 200 steps, Operation mode (Run straight, Turn right or left, Stop, Speed change, Obstacle sensor changeover) (Intersection entry control) (Wireless running route control) (Start by remote controller) | |
| Safety functions | |
| Overload detection Obstacle sensor (Detection area changeable) Emergency stop switch, Buzzer alarm for abnormalities Signal tower Bumper sensor Melody unit | |
| Others | |
| Drive wheel free structure in manual operation (Electrical powered pin hook) (Battery) (Charger) | |
| CE marking is available | |
| Reference | Option |
