It can run at ultra slow speed
- Running Speed 0.1 to 50m/min
- You can build a flexible assembly line by towing a assembly cart.
- Ultra slow speed running is available for the following types.
L type, M type, S type

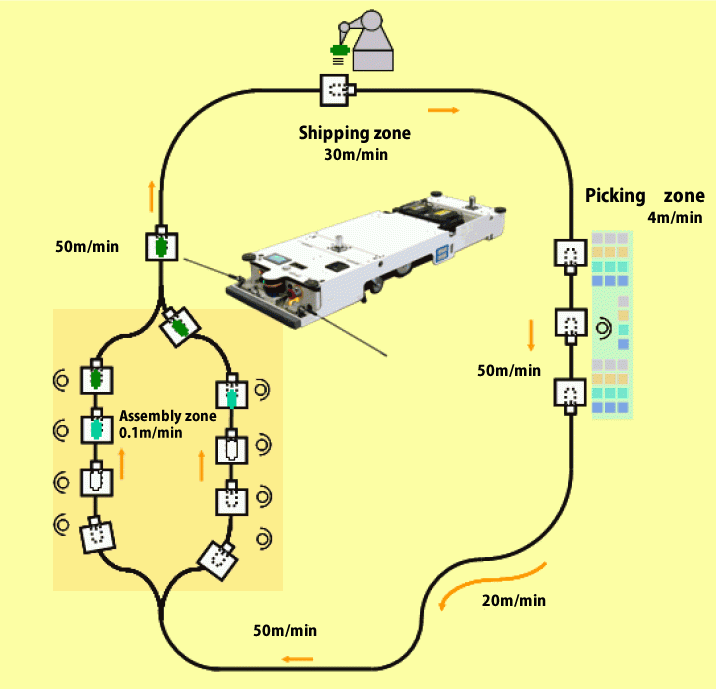

Assembly line operated by Ultra Slow Speed type
The number of assembly lines with AGV has been increasing.
The number of assembly line with Ultra Slow Speed type (0.1m/min to 50m/min) has been increasing.
Flexible AGV line
-
- No fixed equipment separating spaces like conveyer lines is required.
- Without conveyers, assembling is possible from all directions.
- To change lines, you need only to adjust the guidance tape.
- Easy to adjust the line length and the number of the processes in accordance with production volume.
- Easy to assemble different sized products by changing a assemble cart.
- Time loss is incurred as operators have to stop their assembling jobs when AGV is running between processes.
- Time loss is incurred as operators have to stop their assembling jobs when AGV is running between processes.
| Programmable / No Programmable | Programmable (Count Up) |
| Transportable Weight | 750kg (Forward) |
| Guidance Method | Magnetic |
| Drive Method | 2WD |
| Driving Speed | 0.1 ~ 50m/min |
| Length x Width x Height | L Type: 1445 x 170 x 450 (mm) ※350 width is also available |
| Minimum Turning Radius | R700 (mm) |
| Continuous Operation Hours | 8hours (depending on operation rate and battery size) |
| Performance / Function | Running functions |
| Setting speed: 10 speeds | |
| Control function | |
| 200 programs, 200 counts, operation mode (Straight running, Right turn, Left turn, Stop, Speed change, Obstacle sensor changeover, etc.) (200 patterns of operation mode are available) , (Intersection Entry Priority) , (Wireless running route control) , (Start by remote controller) | |
| Safety functions | |
| Overload detection, Obstacle detection (Detection area changeable), Emergency stop switch, Buzzer alarm for abnormalities, Signal tower, Bumper sensor, Melody unit | |
| Others | |
| Drive wheel free structure in manual operation, (Electrical powered pin hook) , (Battery) , (Charger) | |
| CE marking is not available | |
| Reference | Option |
