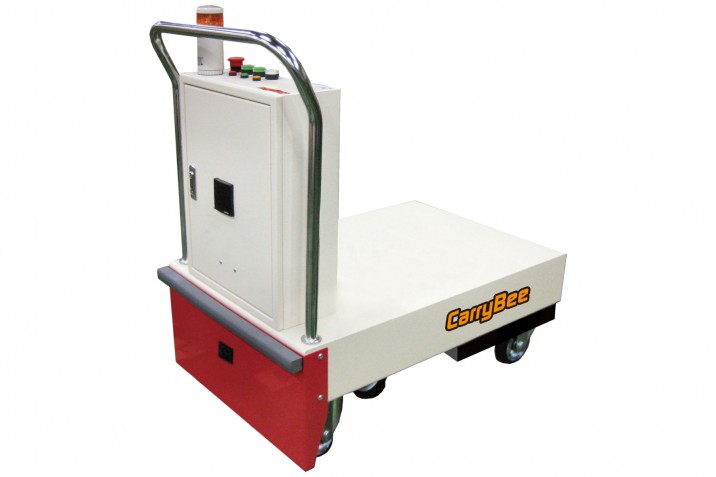

Unmanned transport vehicle for towing customized from a dolly
You can select the best type from many line ups from 200kg to 1,500kg according to your purpose.
| Programmable / No Programmable(Ref.1) | Programmable (Absolute Address, Count Up) / No Programmable (Tape Cut (Gap Reading), Marker Stop, Marker Pattern) Select either of them. |
| Transportable Weight | 400, 500, 750, 1000, 1500kg |
| Guidance Method | Magnetic, (Optical) , (Optical and Magnetic) |
| Drive Method | 2WD |
| Driving Speed | Max. about 27m / min (Available up to 40m/min) |
| Length x Width x Height | 1000kg: 932 x 600 x 941, 1500kg: 1110 x 775 x 1080 (mm) |
| Minimum Turning Radius | 750kg: R550, 1,000kg: R700, 1,500kg: R1000 (mm) |
| Continuous Operation Hours | 8 hours (Depending on utilization rate and battery size) |
| Performance / Function | Running functions |
| (Setting speed : 3-10 speeds variable) | |
| Destination control function | |
| 200 programs, 200steps, Operation mode | |
| (Run straight, Turn right or left, Stop, Speed change, Obstacle sensor changeover) (99 patterns of operation mode available.) , (Intersection entry control) , (Wireless running route control) , (Start by remote controller) | |
| Safety functions | |
| Overload detection, Obstacle detection (Obstacle sensor (Detection area changeable)) Emergency stop switch | |
| Emergency buzzer/alarm (Signal tower) , (Bumper sensor) , (Melody unit) | |
| Others | |
| Drive wheel free mechanism in manual operation (Towing hook) , (Auto-detaching of towed cart) , (Battery Charger) | |
| CE Marking is not available | |
| Remark | (Note. 1) If you select No Programmable type, some options are not available. |
| Option |
